Every board tested, diagnosed and sorted by a Cobot
The Cobot loads each board onto your tester, adds a camera check for visible faults, and hands your technician one clear fault report. The same steps as a person doing it by hand, just faster and the same every time.

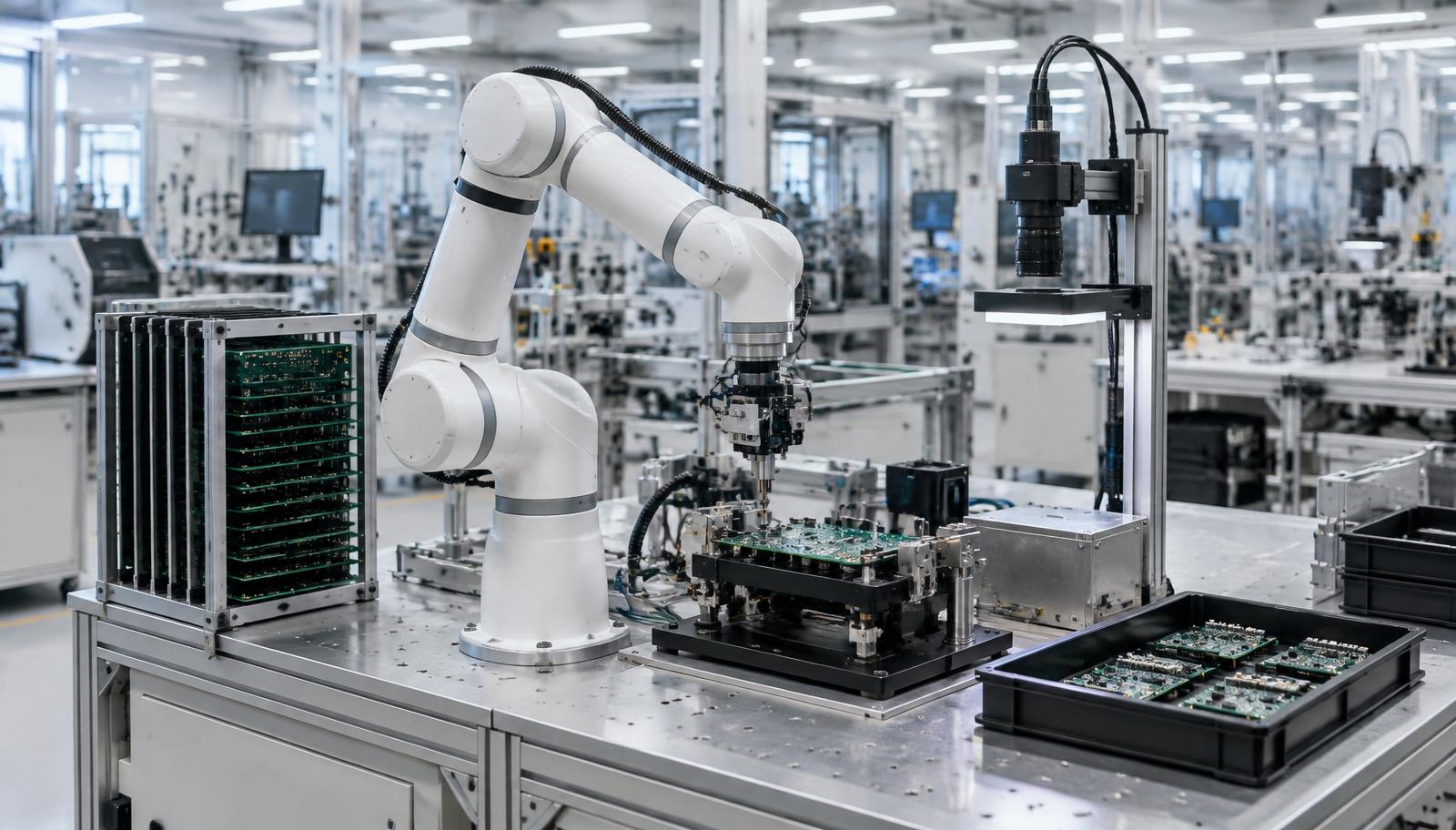

How the cell works
Four steps per board, running without breaks.

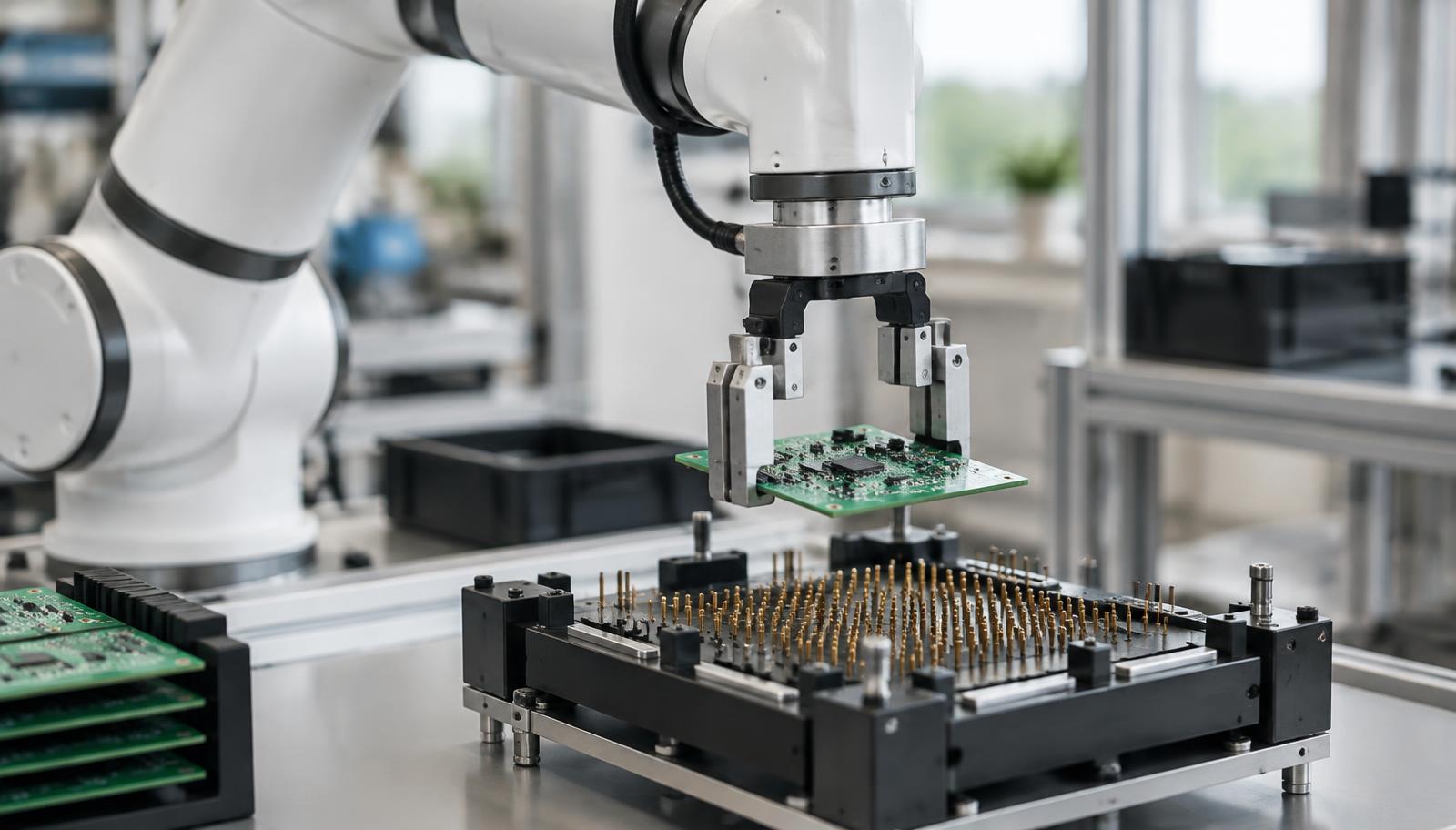

The Cobot takes each board from the rack by its edges and seats it on the test fixture.

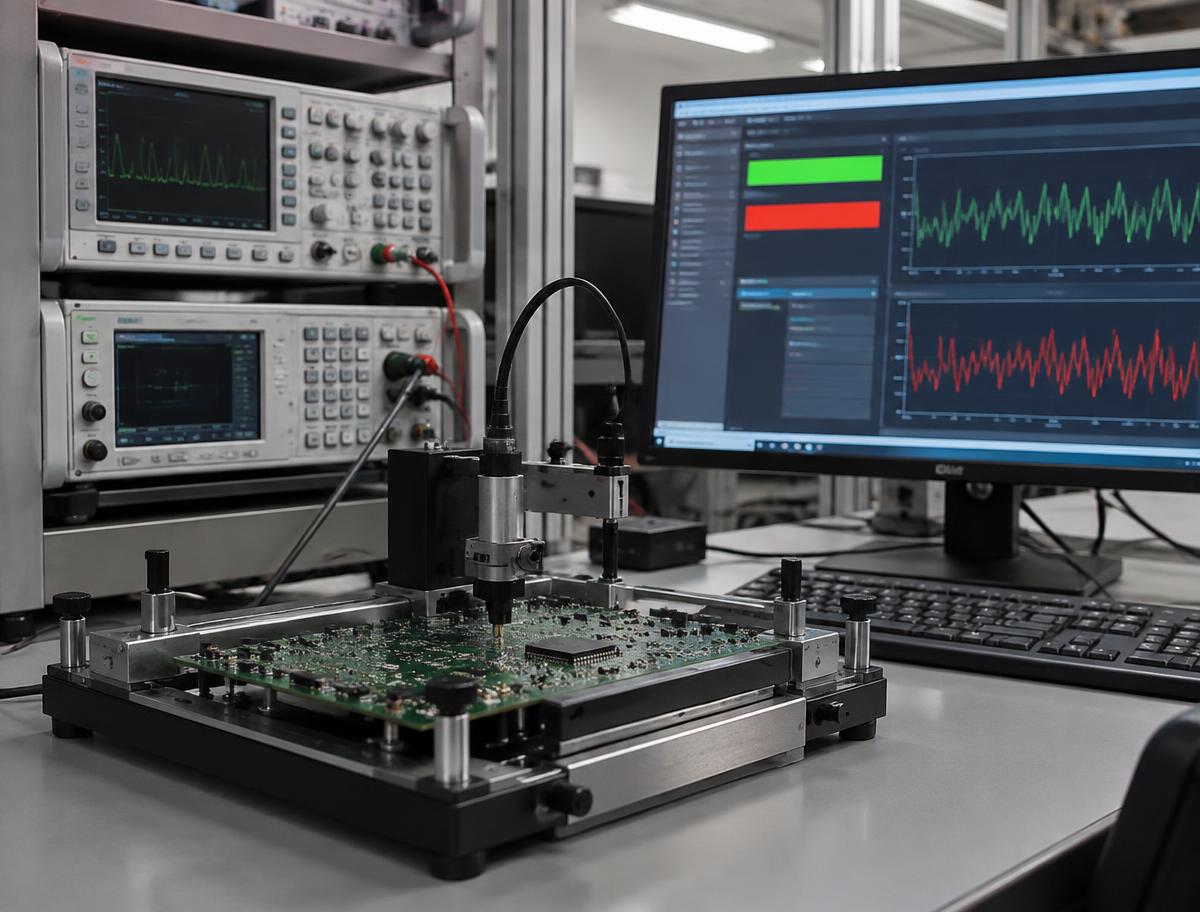

A connected tester, run by a computer, checks power-on, voltages and currents, boundary-scan and firmware.

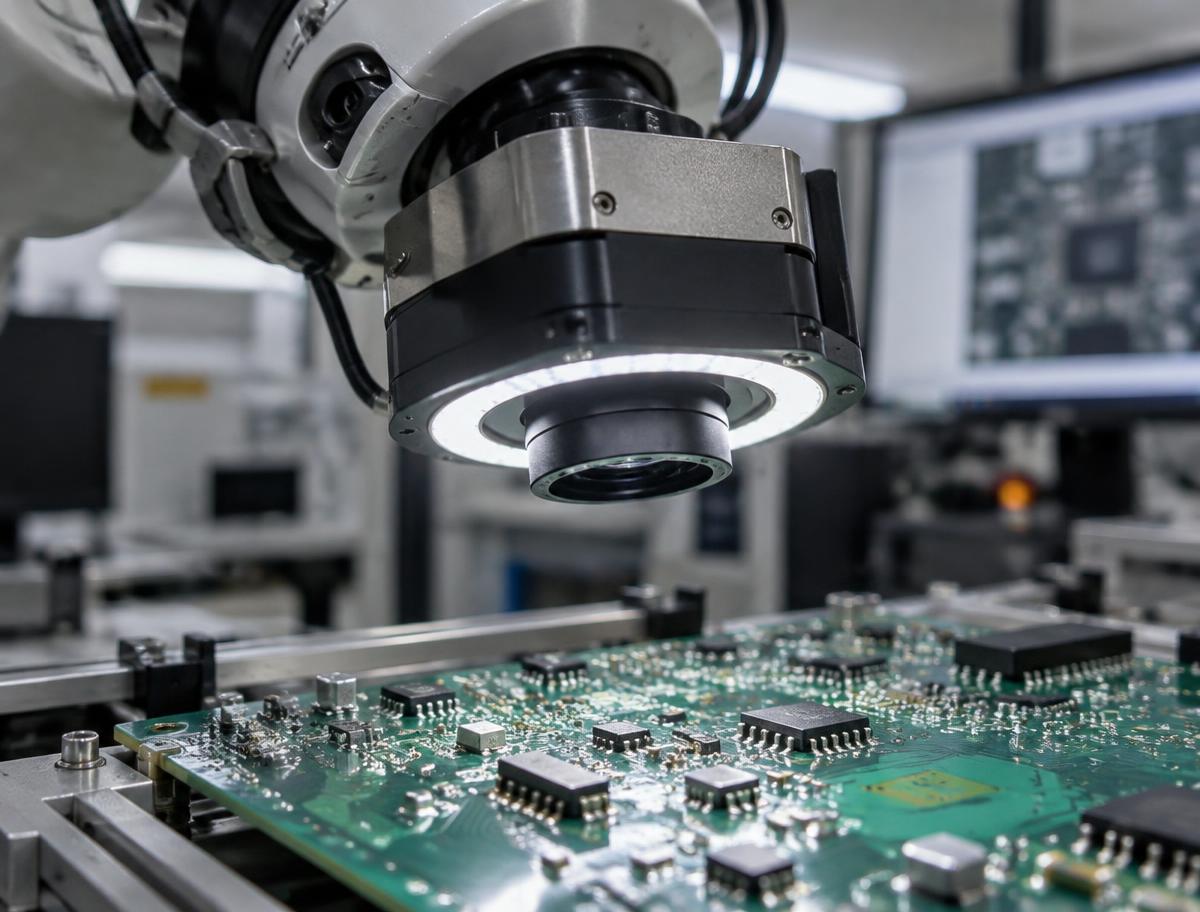

Once the arm has settled, a camera checks for visible faults: solder bridges, missing, tilted or reversed parts, cold joints, burn marks.

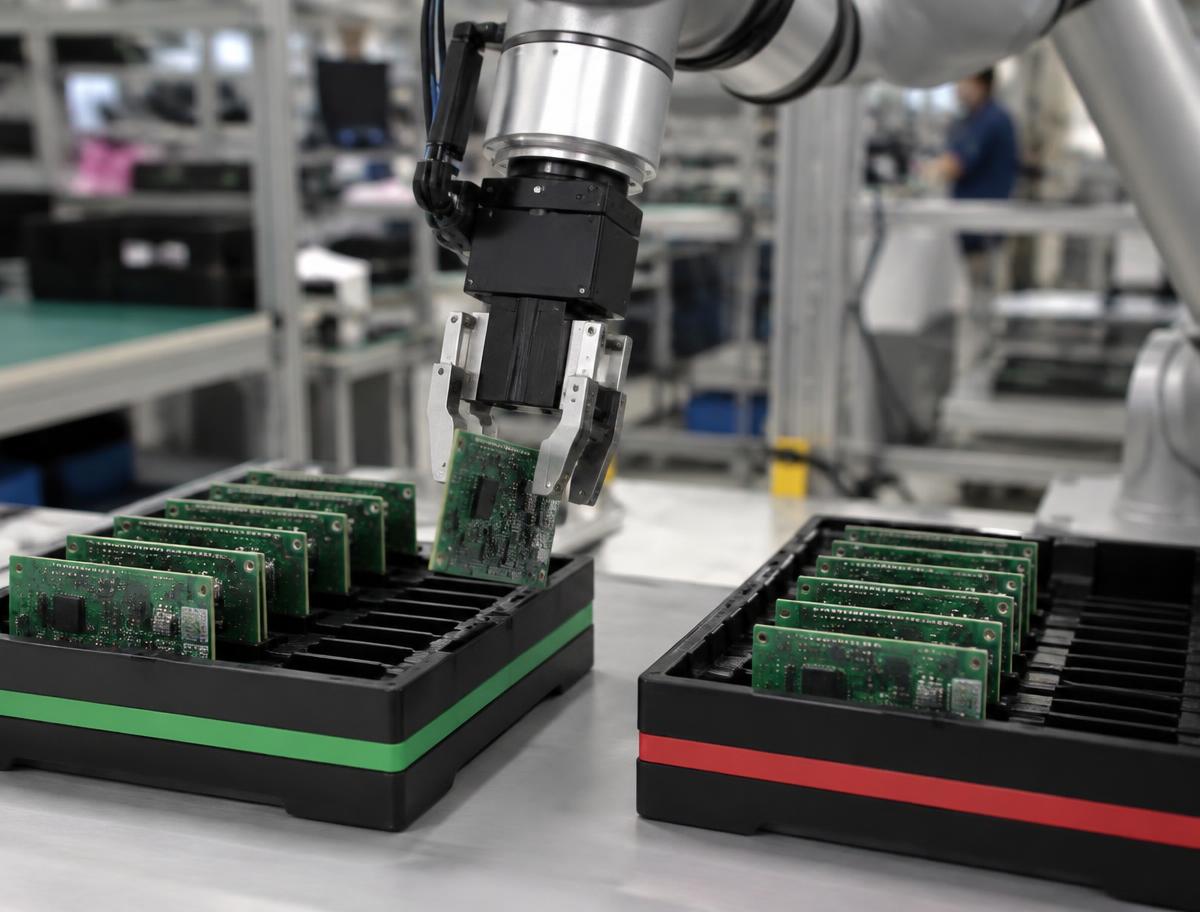

Tester results and the image are combined into one fault report with the likely location. The board goes to the pass or fail tray.
What the cell checks
Visible faults (camera)
- Solder bridges and cold joints
- Missing, tilted or reversed parts
- Burn marks and damaged areas
- Wrong or misplaced components
Electrical faults (tester)
- Power-on and short checks
- Voltage and current out of range
- Boundary-scan (JTAG) failures
- Firmware load and self-test results
What we don't claim
- No 100% promise. Coverage depends on the fixture and test program for each board, and we state it per project.
- Engineers stay in charge. The cell does the repetitive testing and diagnosis. Your technician does the repair.
- Soldering by Cobot is on request only, after a separate safety review.
Your technician only does the repair
Each failed board arrives with a report: which test failed, the camera image and the likely location. No more hunting for the fault. Skilled people spend their time fixing boards instead of testing them.
Built for
- Electronics assembly companies (EMS)
- Repair and refurbishment centres
- Test labs and product makers running pilot batches
How we work together
We look at your sample boards and your current tester.
Built for your board and quoted per project.
The cell runs on your line and we measure the results together.
24/7 remote support and technicians in APAC, EU and the Americas.
